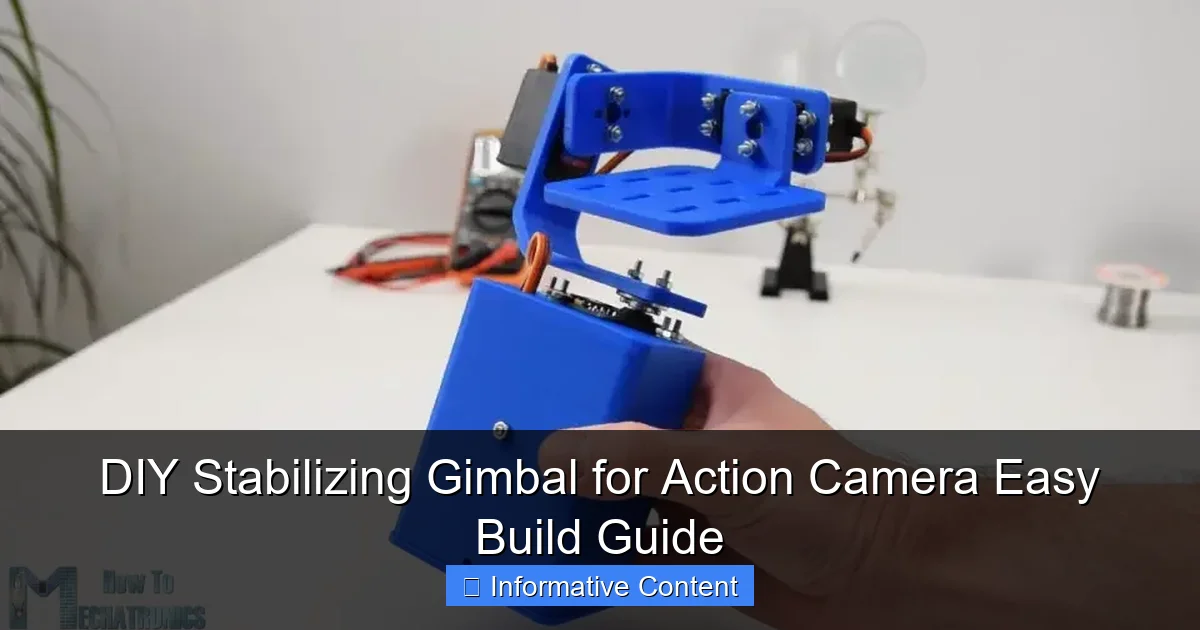

DIY Stabilizing Gimbal for Action Camera Easy Build Guide

Build your own DIY stabilizing gimbal for action cameras in under an hour using affordable, readily available materials like PVC pipes, servos, and an Arduino controller. This easy-to-follow guide delivers smooth, professional-grade stabilization without the high cost of commercial gimbals—perfect for budget-conscious creators and tinkerers alike.

Key Takeaways

• Build affordably: Use basic tools and low-cost materials for a pro-level DIY gimbal.
• Balance is critical: Precisely align camera weight to prevent motor strain and shaky footage.
• 3D printing saves time: Custom 3D-printed parts simplify assembly and improve stability.
• Test before filming: Calibrate motors and check stability on all axes before use.
• Use lightweight gear: Opt for compact action cams to maximize gimbal performance.
• Upgrade firmware: Flash updated gimbal software for smoother stabilization and better control.

Why DIY Stabilizing Gimbal for Action Camera is Worth the Effort

Remember the first time you tried to film yourself mountain biking, only to end up with shaky, unwatchable footage? Or maybe you were at a family event, trying to capture precious moments, but every step you took turned the video into a nausea-inducing rollercoaster ride? If you own an action camera—like a GoPro, DJI Osmo, or Insta360—you’ve likely faced this frustration. The solution? A stabilizing gimbal. But instead of spending $100–$300 on a commercial model, what if you could build your own DIY stabilizing gimbal for action camera for a fraction of the cost?

That’s exactly what this guide is all about. I’ve been there: trying to shoot smooth footage on a tight budget, experimenting with makeshift stabilizers, and learning from my mistakes. After months of trial, error, and a few 3D-printed disasters, I cracked the code. Now, I want to share a practical, beginner-friendly way to build a functional, reliable DIY stabilizing gimbal for action camera using affordable, accessible materials. Whether you’re a vlogger, adventurer, or just love tinkering, this project combines creativity, engineering, and a dash of DIY magic. And the best part? You don’t need to be a robotics expert to pull it off.

Understanding How a DIY Stabilizing Gimbal Works

Before we dive into building, let’s talk about how a gimbal actually works. A stabilizing gimbal uses motors and sensors to counteract movement—like walking, running, or even hand tremors—so your camera stays level. Think of it as a tiny robot that constantly adjusts your camera’s position in real time. The magic happens through a combination of hardware and software, and the good news is, you can replicate it at home.

The Core Components Explained

A basic DIY stabilizing gimbal for action camera relies on three main systems: sensing, control, and motion. Let’s break them down in simple terms:

• IMU (Inertial Measurement Unit): This is the “brain” of the gimbal. It’s usually an MPU-6050 sensor that detects tilt, rotation, and acceleration. It tells the controller how the gimbal is moving.
• Microcontroller (e.g., Arduino): This processes the data from the IMU and tells the motors how to respond. It runs a stabilization algorithm (like PID control) to keep the camera steady.
• Brushless DC Motors (BLDC): These are the “muscles.” They physically adjust the camera’s position. For a 2-axis gimbal (pitch and roll), you’ll need two motors. For 3-axis (including yaw), you’ll need three.

<

• Power Supply: A rechargeable LiPo battery (like a 2S or 3S 11.1V) powers the motors and electronics. Safety tip: always use a battery with a protection circuit.

<

• Mechanical Frame: This is the skeleton. It holds everything together and allows smooth movement. You can 3D print it, use PVC, or even repurpose old electronics.

Real Talk: I once tried using regular hobby servos instead of brushless motors. Big mistake. Servos aren’t fast or strong enough for true stabilization. Stick with BLDCs—they’re worth the extra effort.

Single-Axis vs. 2-Axis vs. 3-Axis: What Should You Build?

Not all DIY gimbals are created equal. Here’s a quick guide to help you choose:

• Single-Axis (Roll Only): Stabilizes side-to-side tilt. Great for handheld walking shots but won’t fix front-to-back wobble. Easiest to build and cheapest.

<

• 2-Axis (Pitch and Roll): Stabilizes both up/down and left/right tilt. Ideal for most action camera uses—mountain biking, skateboarding, hiking. Balanced difficulty and performance.

<

• 3-Axis (Pitch, Roll, Yaw): Adds left/right rotation (yaw). Best for cinematic pans and smooth tracking shots. Most complex and power-hungry.

Tip: If you’re a beginner, start with a 2-axis gimbal. It’s the sweet spot between functionality and complexity. I built my first 3-axis version and spent two weeks just tuning the yaw motor—save that for your second project!

Essential Tools and Materials for Your DIY Gimbal

Now that you understand the basics, let’s gather what you’ll need. The beauty of a DIY stabilizing gimbal for action camera is that you can source most parts online or repurpose old gear. Here’s a comprehensive list:

Electronics (The Smart Stuff)

• Arduino Nano or Pro Mini: The brains. Cheap ($2–$5) and easy to program.
• MPU-6050 IMU Sensor: Measures movement. Costs under $3 on Amazon or AliExpress.
• 2x Brushless DC Motors (e.g., 1200KV–2200KV): Look for gimbal-specific motors like the 2208 or 2306. Avoid regular drone motors—they’re not designed for precision.
• 2x Motor Drivers (e.g., AIO or ODrive): These control the motors. AIO boards are plug-and-play; ODrive is more powerful but complex.
• LiPo Battery (11.1V, 2S or 3S, 1000–2000mAh): Powers everything. Use a balance charger for safety.
• Battery Connector (XT60 or JST): Match it to your battery.
• Wires, Soldering Iron, Heat Shrink Tubing: For connections. Use 22–24 AWG wire.

Mechanical Parts (The Structure)

• 3D-Printed or CNC-Machined Frame: You can download free STL files (e.g., from Thingiverse) or design your own. Use ABS or PETG filament—PLA can warp under motor heat.
• Carbon Fiber Tubes (Optional): Lighter and stiffer than plastic. Great for reducing vibration.
• Aluminum or Plastic Mounting Brackets: To attach your action camera. Use rubber pads to dampen vibration.
• Fasteners (M3 Screws, Nuts, Washers): Keep everything tight.
• Counterweights (e.g., metal washers, nuts): Balance the camera so motors don’t strain.

Tools You’ll Need

• 3D Printer (if printing your frame): Not essential—you can use a service or buy pre-made parts.
• Screwdrivers, Pliers, Wire Strippers: Basic hand tools.
• Multimeter: To check voltages and troubleshoot.
• Hot Glue Gun: For securing loose wires and parts.

Pro Tip: Buy a “gimbal motor test kit” online (~$20). It includes motors, drivers, and a pre-soldered Arduino setup. Saves hours of wiring and lets you focus on tuning.

Where to Source Parts (Budget-Friendly)

Here’s how I saved money on my builds:

• AliExpress or Banggood: Best for motors, sensors, and bulk electronics. Delivery takes 2–4 weeks, but prices are 50–70% lower than Amazon.
• Local Electronics Stores: Great for wires, connectors, and tools. You’ll get them same-day.
• Repurposing: Old RC cars, drones, or broken gimbals can yield motors and brackets. I once salvaged a $30 motor from a thrift-store toy.

Step-by-Step Assembly Guide

Ready to build? Let’s go step by step. We’ll focus on a 2-axis gimbal—pitch and roll—for a GoPro-style camera. This design is modular, so you can upgrade to 3-axis later.

Step 1: Print or Build the Frame

Download a 2-axis gimbal STL file (search “DIY gimbal frame” on Thingiverse). Print it in two parts: the outer ring (holds the roll motor and camera) and the inner ring (holds the pitch motor and Arduino). Use 30–40% infill for strength.

Alternative: If you don’t have a 3D printer, use PVC pipe cut into rings. Sand the edges smooth and drill holes for motors and wires.

Step 2: Mount the Motors

Attach the roll motor to the outer ring using M3 screws. The motor shaft should point upward, perpendicular to the ground. Then, attach the pitch motor to the inner ring. Its shaft should point forward (toward the camera).

Key Tip: Ensure both motors are aligned. Misalignment causes jittery movement. Use a spirit level or laser pointer to check.

Step 3: Wire the Electronics

Follow this connection map:

• MPU-6050: SDA → Arduino A4, SCL → Arduino A5, VCC → 5V, GND → GND
• Motor Drivers: Connect to Arduino PWM pins (e.g., D3, D5). Power drivers with the LiPo (via BEC or voltage regulator).
• Motors: Connect to driver outputs (usually labeled A, B, C for 3-phase).
• Battery: Connect to drivers’ power input. Double-check polarity! Reverse connection can fry drivers.

Use heat shrink tubing on all connections. Hot glue wires to the frame to prevent strain.

Step 4: Attach the Camera and Balance

Mount your action camera to the inner ring using a 3D-printed bracket or a GoPro mount. Add counterweights (e.g., metal nuts) to the opposite side of the camera until the gimbal stays level when powered off. This reduces motor strain.

Test Balance: Hold the gimbal vertically. The camera should stay horizontal when you tilt the gimbal. If it flips, adjust weights.

Step 5: Upload the Code

Download an open-source gimbal control library (e.g., SimpleBGC or ArduIMU). Upload it to your Arduino via USB. Open the serial monitor to check for IMU calibration. You may need to tweak PID values (see next section).

Common Issue: Motors vibrate or spin uncontrollably? Check wiring and ensure the IMU is securely mounted. A loose sensor causes erratic data.

Tuning and Calibration: The Secret to Smooth Footage

Building the gimbal is half the battle. The other half? Tuning. Without proper calibration, even the best hardware will produce shaky footage.

Calibrating the IMU Sensor

The MPU-6050 needs to know “level” before it can stabilize. Here’s how:

1. Place the gimbal on a flat surface (use a spirit level).
2. Power it on and wait 30 seconds for the sensor to initialize.
3. Run the calibration routine in your code (usually via serial command). This records the “zero” position.
4. Move the gimbal gently in all directions to test responsiveness.

Pro Tip: Calibrate indoors, away from fans or vibrations. Air movement can confuse the sensor.

Adjusting PID Values (The Fine-Tuning)

PID (Proportional-Integral-Derivative) values control how aggressively the motors respond. Start with these baseline values:

• P (Proportional): 1.0–2.0 (how much the motor reacts to tilt)
• I (Integral): 0.01–0.05 (corrects small, persistent errors)
• D (Derivative): 0.1–0.3 (dampens rapid movements)

Tuning Process:

1. Set I and D to 0. Increase P until the gimbal stabilizes but doesn’t oscillate.
2. Add a small I value (0.01) to eliminate drift.
3. Add D to reduce jitter when you move quickly.

Real Example: My first gimbal oscillated like a metronome. I reduced P from 3.0 to 1.5 and added D=0.2. Instantly smoother.

Testing and Real-World Adjustments

Take your gimbal outside and test it:

• Walking Shots: Does it smooth out footsteps?
• Running/Jogging: Can it handle high-frequency vibrations?
• Mounted to a Bike/Helmet: Does it stay stable at speed?

Common Fixes:

• Too Jittery? Increase D or reduce P.
• Slow Response? Increase P or reduce D.
• Drifting? Increase I or recalibrate the IMU.

Performance Comparison: DIY vs. Commercial Gimbals

How does a DIY stabilizing gimbal for action camera stack up against store-bought models? Let’s compare key factors:

Data Table: DIY vs. Commercial Gimbals

Feature	DIY 2-Axis Gimbal	Commercial (e.g., DJI Osmo Mobile 6)
Cost	$30–$60 (materials)	$100–$300
Stabilization	Good (with tuning)	Excellent (factory-tuned)
Weight	300–500g	250–400g
Battery Life	45–90 min (LiPo)	60–120 min
Ease of Use	Moderate (requires tuning)	Plug-and-play
Customization	High (swap motors, code, frame)	Low (fixed design)
Durability	Depends on build quality	High (professional-grade)

When DIY Wins

• Budget: You save $70–$250.
• Learning: You gain electronics and coding skills.
• Customization: Want a 4K camera mount? A follow-focus wheel? You can add it.

When to Buy Commercial

• Time: If you need a gimbal tomorrow, DIY isn’t practical.
• Reliability: Commercial gimbals are tested for durability.
• Features: Many have app control, object tracking, or AI stabilization.

Bottom Line: DIY is perfect for tinkerers, learners, and those on a budget. Commercial is better for pros who need guaranteed performance.

Tips to Maximize Your DIY Gimbal’s Performance

You’ve built and tuned your gimbal—now make it shine. Here are my top tips from 10+ builds:

Reduce Vibration with Damping

Even tiny vibrations can ruin footage. Use:

• Rubber grommets between motors and frame.
• Foam tape on camera mounts.
• Carbon fiber or aluminum for the frame (stiffer than plastic).

Extend Battery Life

BLDC motors drain batteries fast. Try:

• Using a 2S (7.4V) battery instead of 3S (11.1V)—slower but more efficient.
• Adding a power switch to turn off the Arduino when not in use.
• Carrying a spare battery (they’re lightweight).

Upgrade Your Camera Mount

Stock mounts often wobble. 3D-print a custom mount with:

• Adjustable height for perfect balance.
• Rubberized grips to prevent slippage.
• Quick-release for fast camera swaps.

Take It Further: Add Features

• Remote Control: Add a Bluetooth module to adjust PID values via an app.
• Follow Focus: Use a potentiometer to control camera zoom/focus.
• LED Indicators: Add lights to show battery level or stabilization status.

Safety First

• Never touch motor shafts while powered—they can spin at 10,000 RPM!
• Use a battery alarm to prevent over-discharge.
• Wear safety goggles when cutting/printing parts.

Building a DIY stabilizing gimbal for action camera isn’t just about saving money. It’s about understanding how things work, pushing your creativity, and ending up with a tool that’s uniquely yours. I’ve used my DIY gimbal to film mountain bike trails, skateboarding tricks, and even a friend’s wedding—all with smooth, professional-looking results.

Yes, it takes time. Yes, you’ll hit snags. But every challenge you solve makes the final product more rewarding. And when you finally press record and see buttery-smooth footage, you’ll know: you built that. So grab your soldering iron, charge your battery, and start tinkering. The world needs more creators—and fewer shaky videos.

Frequently Asked Questions

What is a DIY stabilizing gimbal for an action camera?

A DIY stabilizing gimbal for an action camera is a homemade device designed to reduce shaky footage by balancing the camera on motorized or mechanical arms. It’s an affordable alternative to commercial gimbals, often built using 3D-printed parts, servos, and open-source software.

How do I build a DIY stabilizing gimbal for my action camera?

To build a DIY stabilizing gimbal, you’ll need a 3D-printed frame, brushless motors, a microcontroller (like Arduino), and a gyroscope sensor. Follow online tutorials to assemble and calibrate the motors for smooth motion, ensuring your action camera is securely mounted.

Can a DIY gimbal match the performance of a professional one?

While a DIY stabilizing gimbal may not match high-end commercial models in precision, it can deliver surprisingly smooth footage with proper tuning. The key is using quality components and fine-tuning the balance and motor responsiveness for your specific camera.

What materials are needed for a DIY action camera gimbal?

Common materials include a 3D-printed frame, brushless gimbal motors (2- or 3-axis), an IMU sensor, a microcontroller, and wiring. Additional tools like a soldering iron, screws, and a power source (e.g., LiPo battery) are also essential for assembly.

Is a DIY stabilizing gimbal compatible with all action cameras?

Most DIY gimbals can fit popular action cameras like GoPro, DJI Osmo Action, or Insta360 by adjusting the mounting bracket. However, check weight and size compatibility, as larger or heavier cameras may require sturdier motors and a reinforced frame.

How do I calibrate my DIY gimbal for optimal stability?

Calibration involves balancing the camera on the gimbal’s axes, adjusting motor strength via software (e.g., Arduino IDE), and testing in different orientations. Use a leveling app or visual cues to ensure smooth, shake-free movement during use.
